Robotic Coil De-banding / Destrapping Systems

END UNSAFE LABOR CONDITIONS AND DELIVER ON YOUR SAFETY GOALS.

Radian Robotics designs and integrates robotic coil debanding systems for steel and aluminum mills. Also known as robotic destrappers or automatic coil strap-removal systems, these cells locate, secure, cut and remove bands before transferring the scrap strap to a winder for controlled disposal.

The system reduces operator exposure to tensioned steel bands and repetitive manual cutting while maintaining the material flow required at pickling lines, cold-strip mills, galvanizing lines, tandem mills and coil-processing facilities. Each system is engineered around the customer’s coil range, band configuration, line controls, operating environment and production requirements.

Radian can also configure automatic de-banding systems for plates, profiles, tube stacks and other banded products.

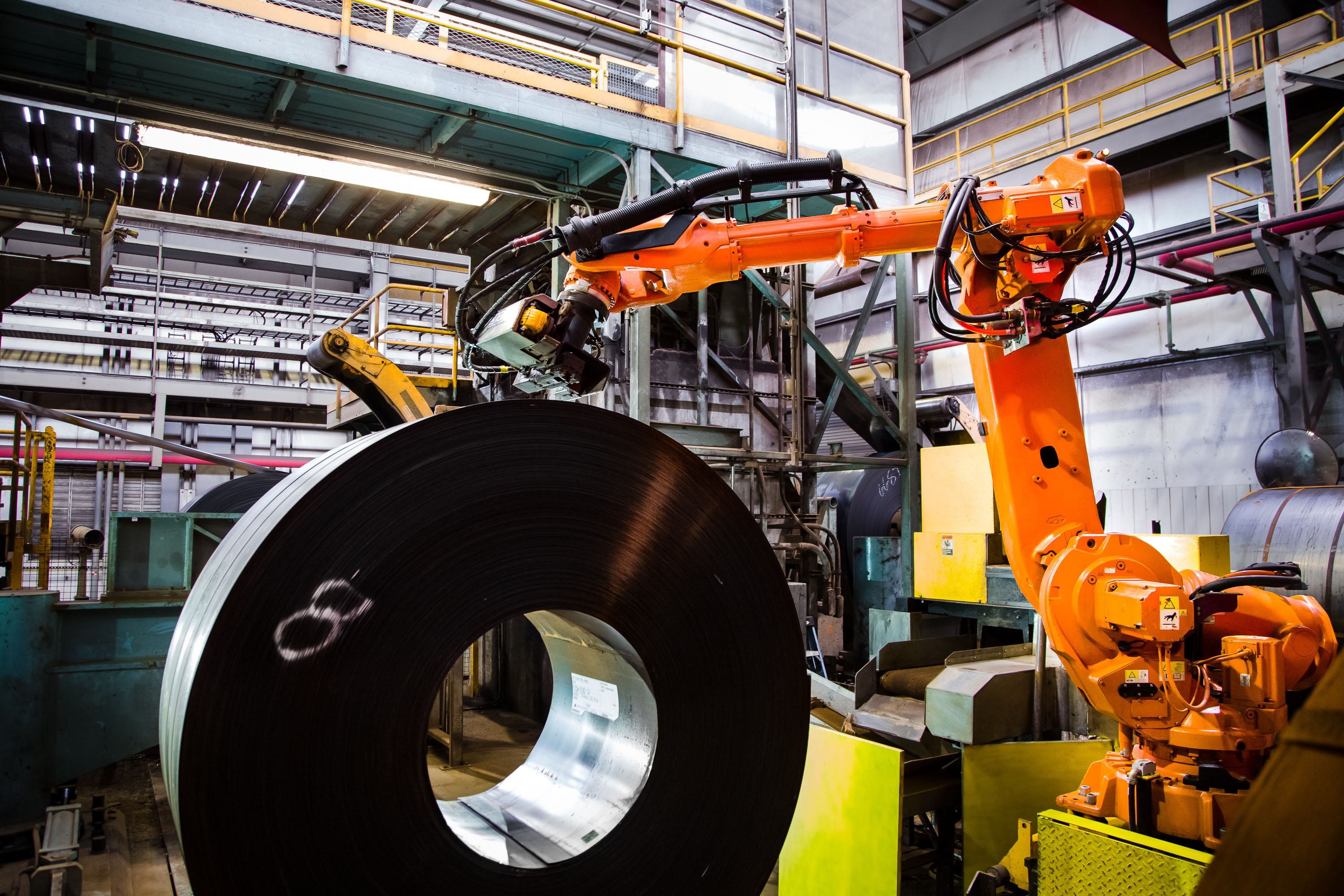

Radian robots arrive on-site fully programmed and ready to integrate into your mill. The robot begins by confirming the size and location of the product and then locates the bands with a built-in laser system. Once all the band locations have been found, the robot cuts and removes them one at a time, using a gripper to keep the band under control. After each band is removed, the robot carries it to an accompanying winder that compresses it into a small, easily disposable package.

De-banding systems fit perfectly at the entrance of pickling lines, slitting lines, cold strip mills, galvanizing lines, tandem mills, and other locations.

What is a robotic coil debanding system?

A robotic coil debanding system automatically detects, cuts, removes and collects the straps securing a steel or aluminum coil. It replaces manual band cutting at the entry point of a processing line and can be integrated with coil conveyors, transfer cars, walking beams and mill control systems.

How automatic coil debanding works?

• Coil arrival and line communication – The debanding cell receives the coil and confirms that it is secured in the operating position.

• Coil and band detection – Sensors or vision locate the coil surface, band positions and applicable ID, OD or circumferential straps.

• Band engagement – The robotic tool positions itself around the selected strap and secures it before cutting.

• Controlled cutting and removal – The strap is cut and lifted away from the coil to reduce uncontrolled movement.

• Strap winding or collection – Removed steel banding is transferred to the strap winder and compressed for disposal.

• Completion confirmation – The cell confirms the sequence is complete and communicates with the production line.

Products and band configurations

• Hot-rolled and cold-rolled coils

• Steel and aluminum coils

• ID or through-eye straps

• OD or circumferential straps

• Steel and PET strapping

• Variable band counts and positions

• Oxidized, dirty or inconsistently placed bands

• Plates, profiles and tube stacks

Technical specifications

• Product types: Steel coils, aluminum coils, plates, profiles, tube stacks

• Strap size: Up to 50mm

• Band orientation: OD and ID

• Strap compaction options: Winder or chopper

• Strap disposal options: Chute or conveyor to scrap box

Custom engineered examples

• 7th Axis destrapper, cutting straps on 2 coil lines: https://youtu.be/q3bCFUVrsMU

• Galv line destrapper with strap guide arm: https://youtu.be/p4QaBE7Gy3U
